Shutdown Circuit

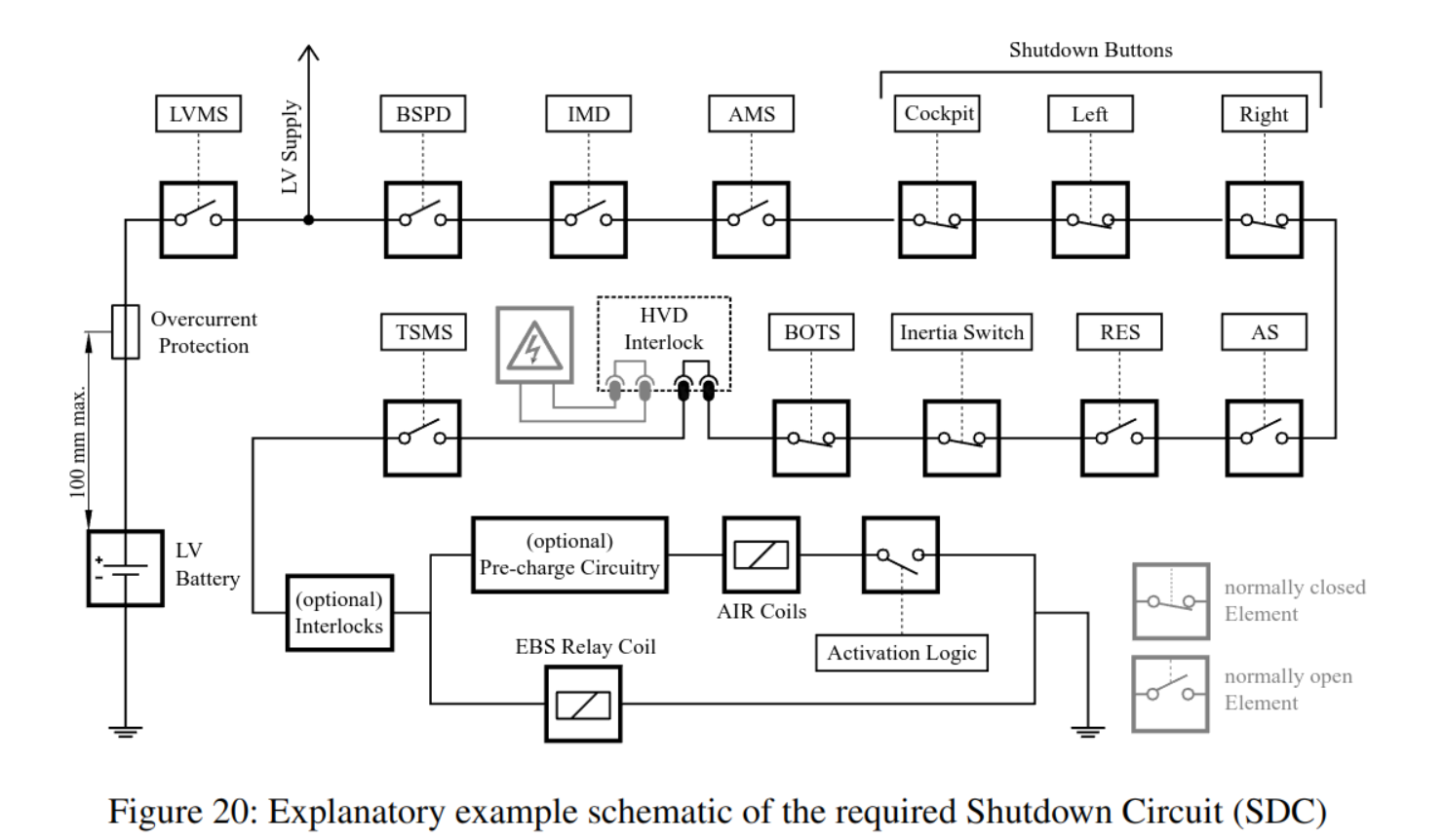

See the SDC schematic in FSG Rules.

AS close shutdown signal is generated by ECU via watchdog timer. When ECU doesn't reset the watchdog AS⇒SDC⇒EBS goes off.

Activation logic is active even if vehicle is in Manual mode according to the FSG25 Competition Handbook.
